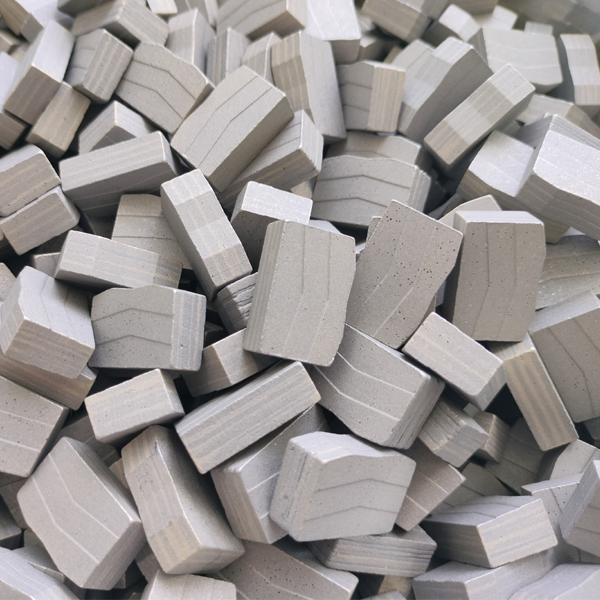

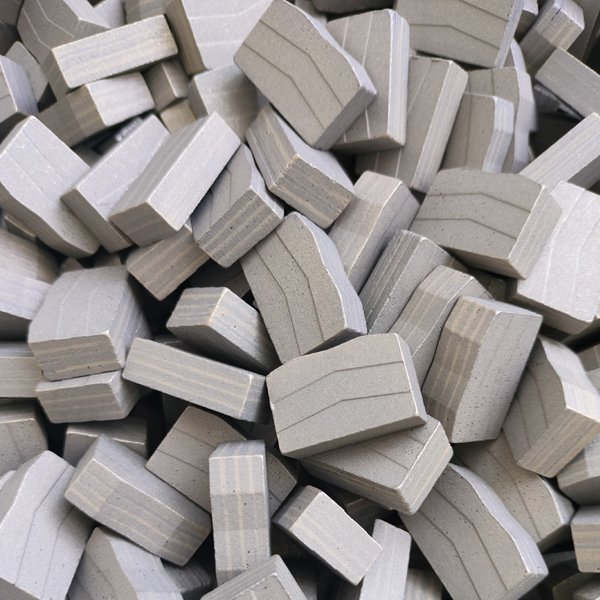

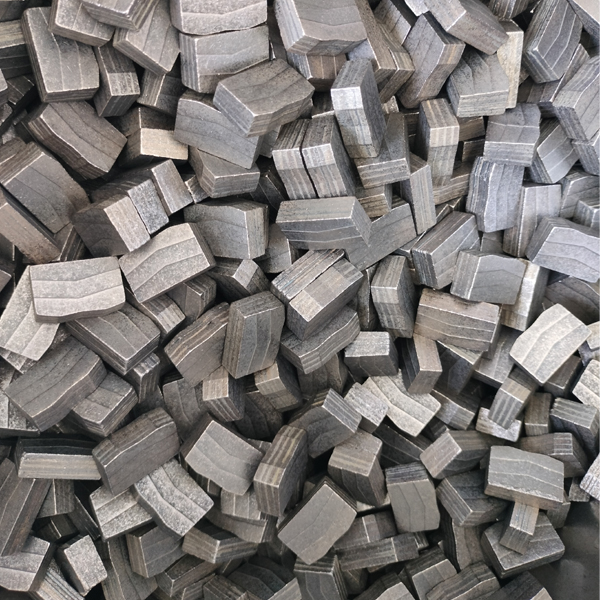

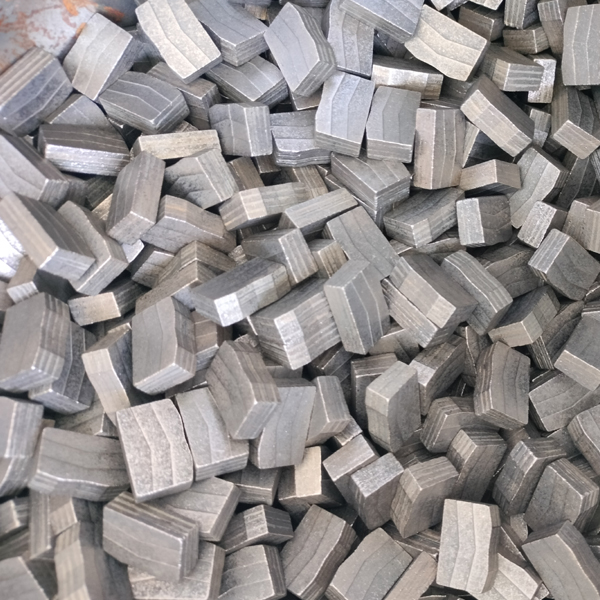

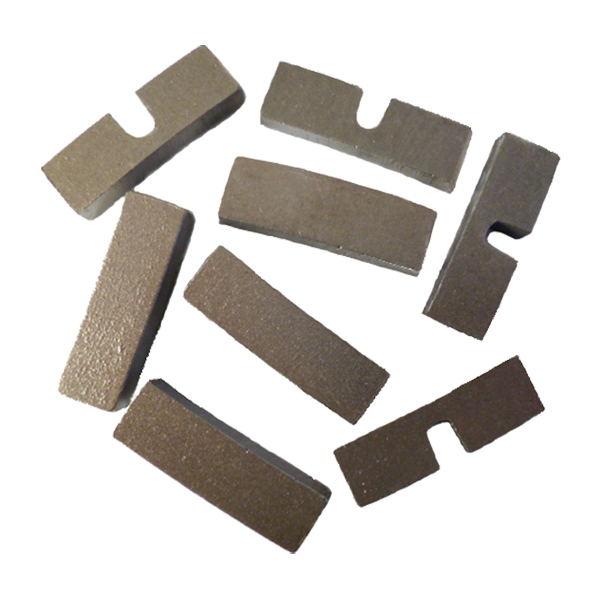

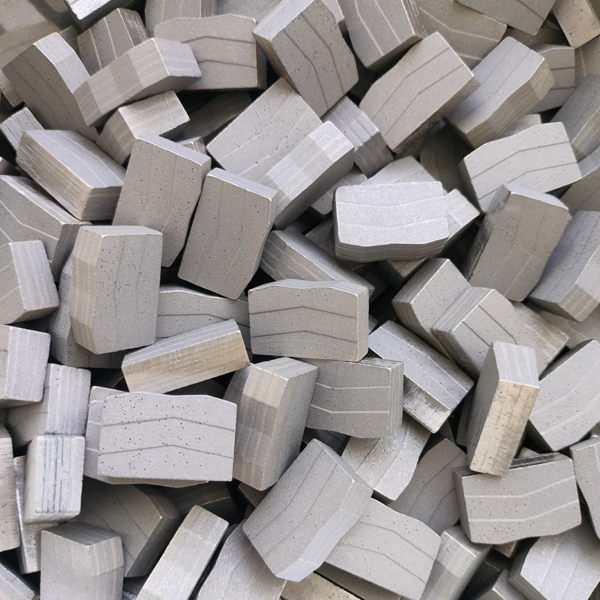

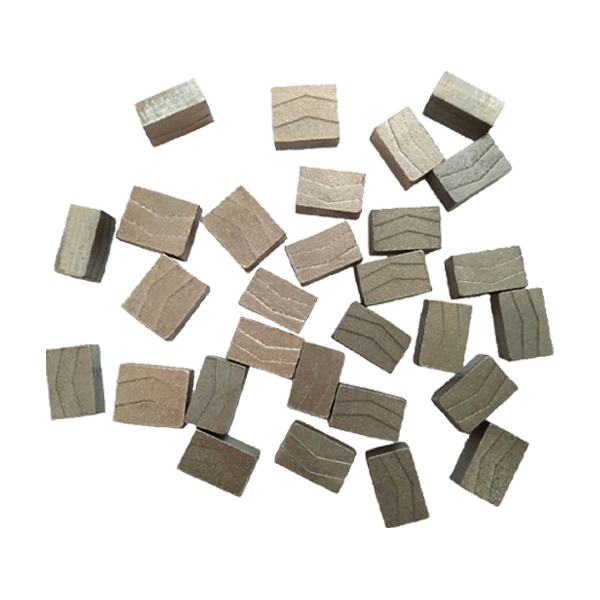

Diamond segments are used for cutting granite,sandstone,limestone,volcanic rock and so on with high efficiency and long lifespan.
1. Diamond Segments used for diameter: 300mm,350mm,400mm,450mm,500mm,600mm,800mm,900mm,
1000mm,1200mm,1350mm,1600mm,1800mm,2000mm,2200mm,2500mm,3000mm etc.
2. Applications:cutting granite,sandstone,limestone,volcanic rock.
Diamond Segments for Cutting Stone
| Item | Diameter (mm) | Segment Thickness (mm) | Segment Height (mm) | Tooth (pcs/set) | Application |
| AS-DSM01 | 300 | 3.0 | 10,15,20 | 21 | For Granite,Sandstone, Limestone,Volcanic Rock |
| 350 | 3.2 | 10,15,20 | 24 | ||
| 400 | 3.6 | 10,15,20 | 28 | ||
| 450 | 3.8 | 10,15,20 | 32 | ||
| 500 | 4.0 | 10,15,20 | 36 | ||
| 600 | 5.0 | 10,15,20 | 42 | ||
| 800 | 6.0 | 10,15,20 | 46 | ||
| 900 | 6.5 | 10,15,20 | 64 | ||
| 1000 | 7.0/6.4 | 15,20 | 70 | ||
| 1200 | 7.8/7.2 | 15,20 | 80 | ||
| 1350 | 8.6/8.0 | 15,20 | 88 | ||
| 1600 | 9.0/8.4 | 15,20 | 108 | ||
| 1800 | 9.8/9.0 | 15,20 | 120 | ||
| 2000 | 10.6/9.8 | 15,20,30 | 128 | ||
| 2200 | 10.6/9.8 | 20,30 | 132 | ||
| 2500 | 11.4/10.6 | 20,30 | 140 | ||
| 3000 | 12.4/11.6 | 20,30 | 160 | ||
| Different thickness,height and tooth are available upom request. | |||||
